CTS 'Long Push-Pull' Audio Taper Pot (Split-Shaft)
CTS 'Long Push-Pull' Audio Taper Pot (Split-Shaft)
Regular price
$12.00
Regular price
Sale price
$12.00
Unit price
/
per

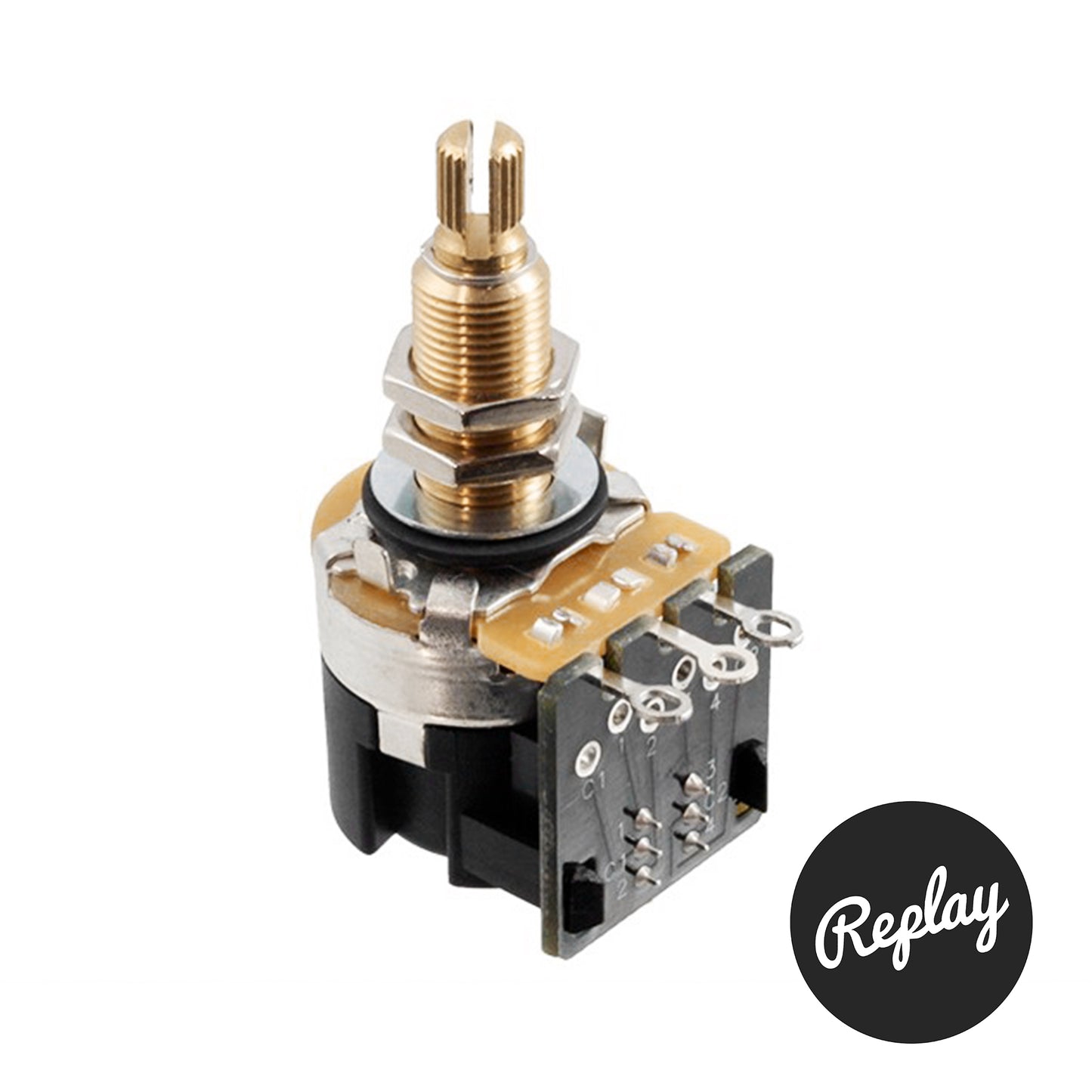

CTS 500k Long Shaft Audio Taper Push Pull Pot - US Thread and 24 Spline.
Includes Nuts, Lock Washer and Dress Washer. Used to control pickup phasing series/parallel switching coil-taps and more.

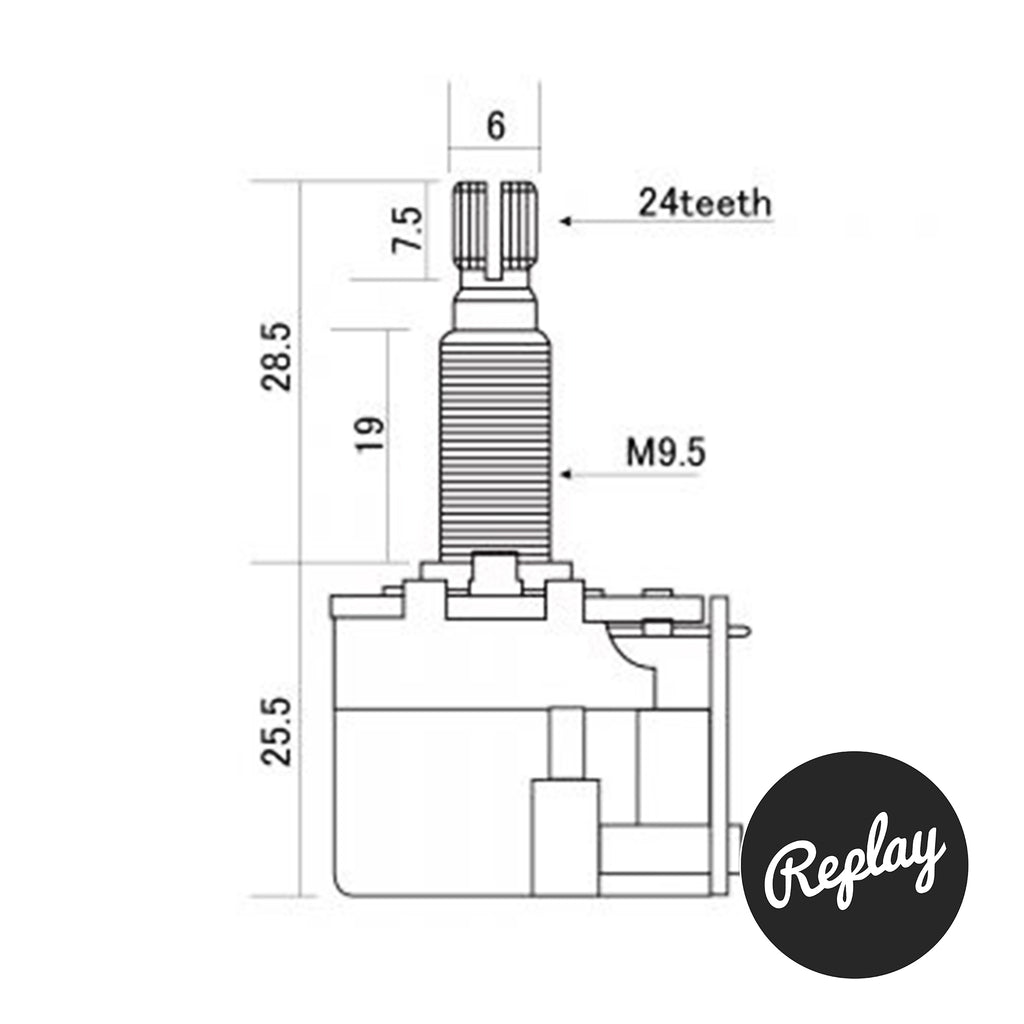

The threaded portion on the shaft is 19mm long. The diameter of the threaded portion of the shaft is 3/8" (9.5mm). The diameter of the Split Shaft / Spline is 6mm.
Requires 1" (25mm) cavity depth.
